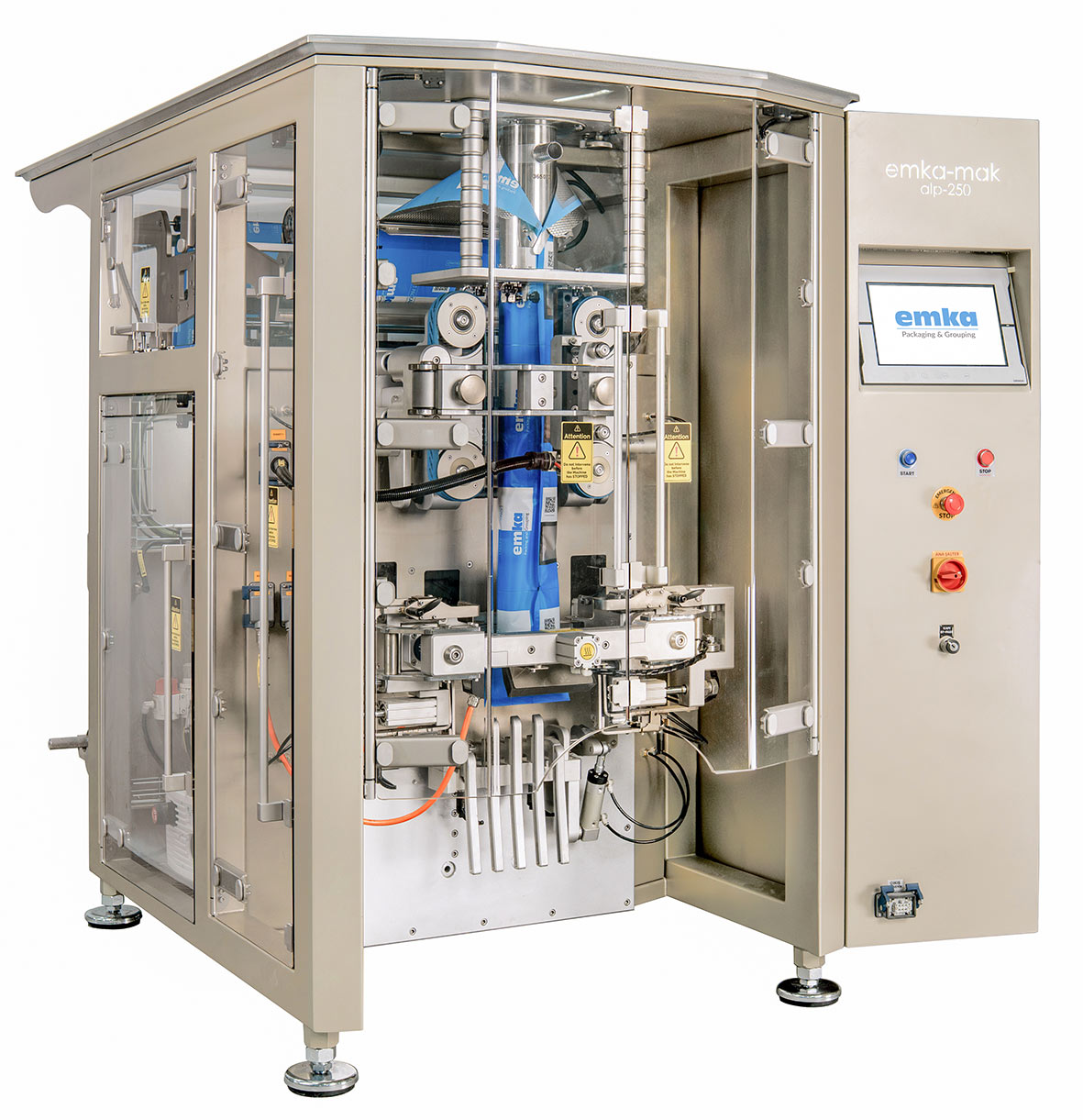

CONTINUOUS PACKAGING MACHINE

FEATURES

  • Motion programmable Logic Controller System
  • 12.1” Color Touch Screen
  • 4pcs. Servo controlled motors
  • High precision planetary gear drive systems
  • Stainless steel output conveyor system
  • Heat Control Device
  • Pneumatic shaft foil system
  • “Bobbin (Foil) decreased” warning system
  • Product low warning and stop system in hopper
  • Integrated Air Blow Gun
  • Safety switches and protective covers
  • Statistics Page with Custom Encryption
  • Edge control feature motor with memory
  • Gusseted System
  • Photocell with motorized memory and edge control adjustment system
  • Pallet puller belt system with vacuum
  • Ability to connect two printers
  • Easy bobbin(coil) insertion system with vacuum
  • Foil pulling system with encoder
  • Ability to change speed while the machine is running
  • Uncoiling motor with analog control drive
  • Movable package tipping system.
  • Foil punching apparatus

PACKAGING MACHINE OPTIONAL FEATURES

  • Edge control feature
  • Ability to work with hot and cold seal (jaw) .
  • Remote Access Module
    Frictionless blown vertical sealing syste

PACKAGING MACHINE DESIGN

  • Original product designs considering innovations in technology and customer needs
  • The areas that the product to be packaged comes into contact with are made of stainless steel and provide easy cleaning
  • The chassis of the machine is baked with electrostatic paint and is dirt-proof, corrosion-resistant and easy to clean
  • Thanks to its original design, labeling and printers can be easily integrated

ADVANTAGES OF CONTINUOUS PACKAGING MACHINES

  • Perfect fit with all packaging types with hot or shock sealing options
  • Separate temperature control for horizontal sealing front-back and vertical sealing.
  • Compatible with Volumetric System, Screw System, Linear
  • Balance System and Multihead Scale System
  • Easy to control machine operation functions and parameters with color touch screen
  • Maximum package quality with servo-controlled pallet group and improved foil group
  • Net packet size encoder
  • Printer adjustment place and package photocell adjustment
  • places are with memory and can be adjusted from the screen.
  • Volumetric system with memory and servo in Volumetric filling
